Glass surfaceAppearanceSolar CellEdge&MountingSize&ShapeComposition

Textures and Finishes

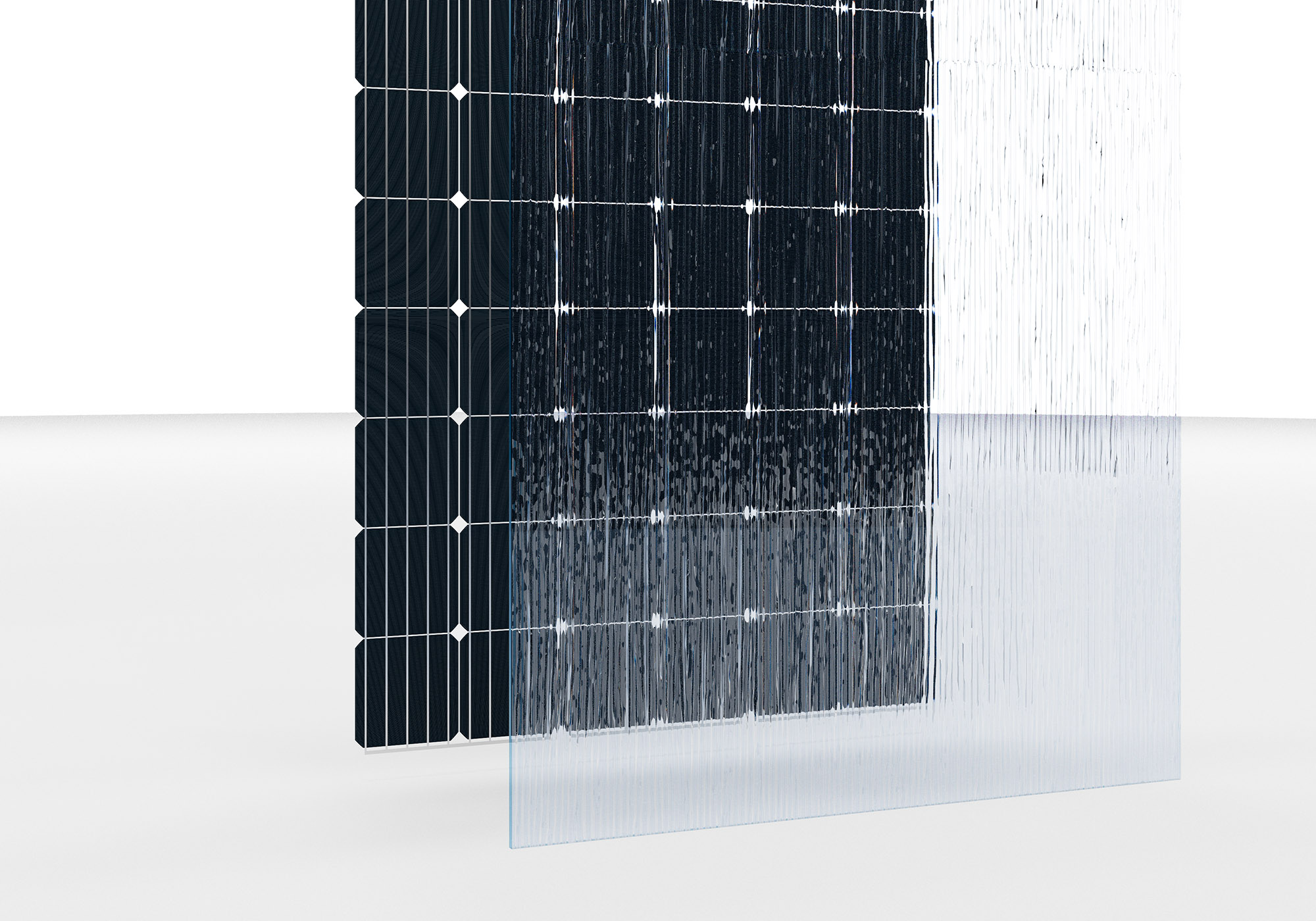

Pixasolar offers a range of glass surface treatments to achieve the desired aesthetic and performance characteristics for your BIPV panels. Choose from ultra-matte, matte, glossy, or multiple textured finishes to control light reflection, glare, and overall visual appearance, ensuring perfect integration with your architectural design.

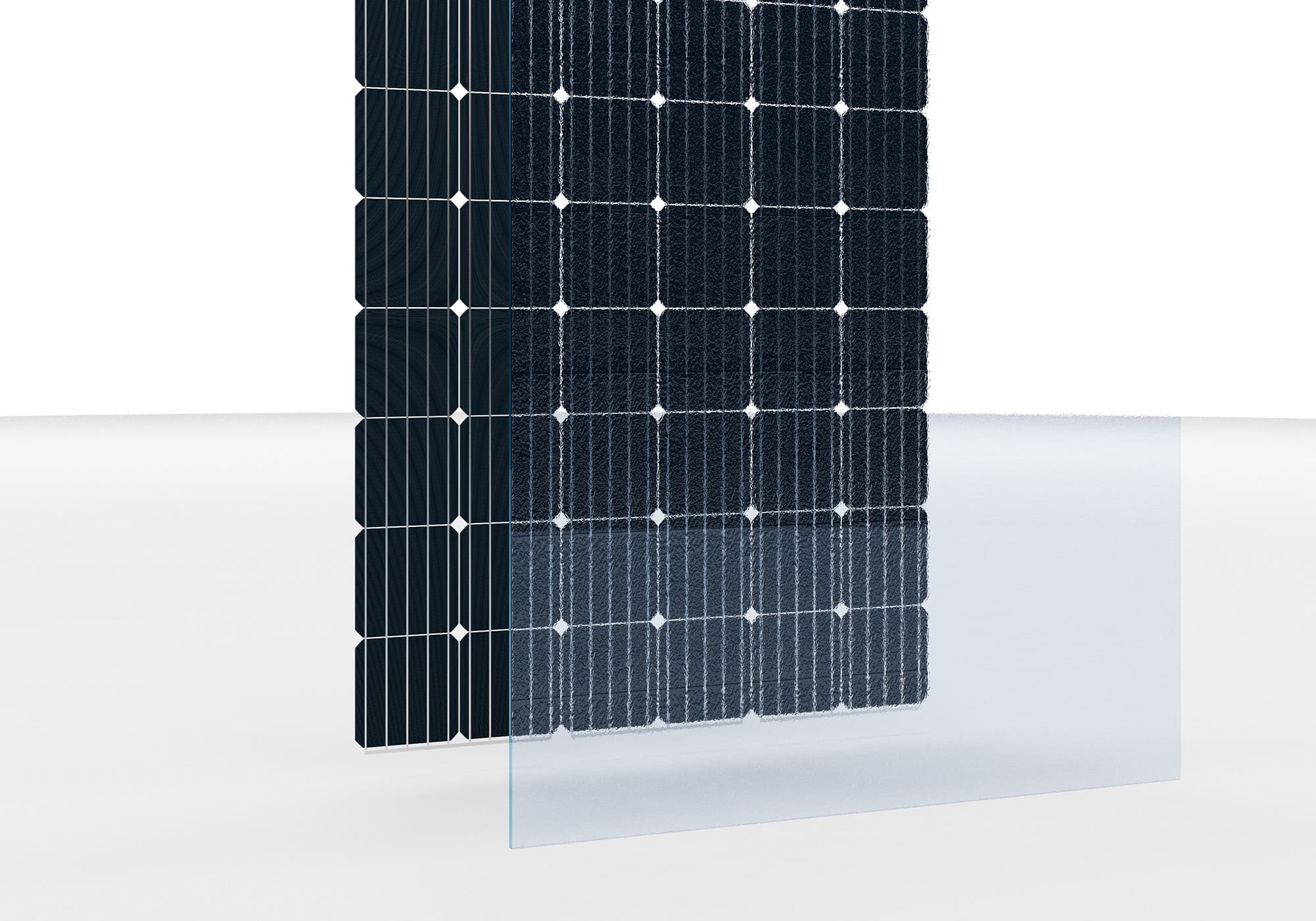

Solar Glass

2/3,2/4 mm

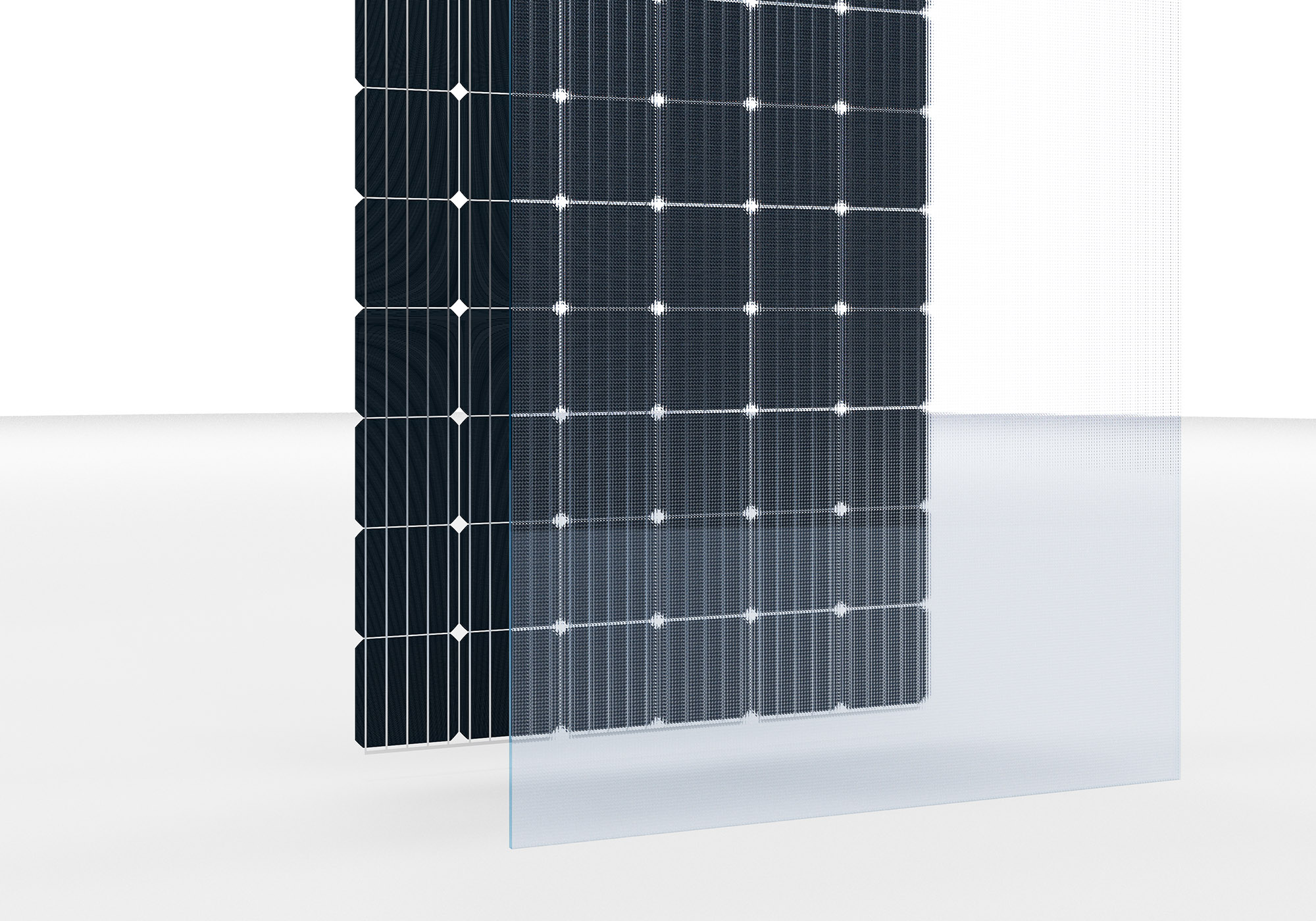

Matte Glass

4-10 mm

Ultra-matte Glass

4-10 mm

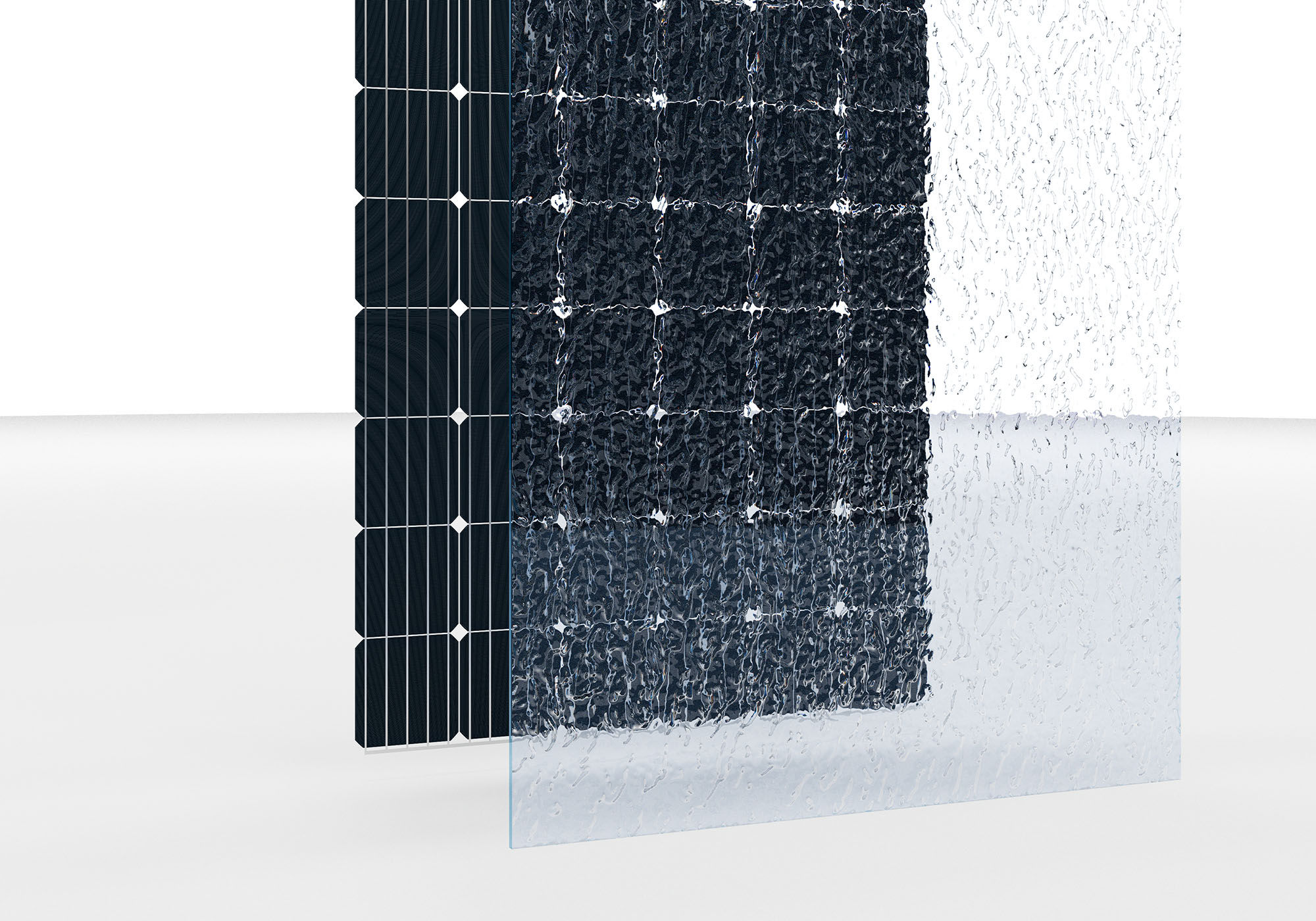

Nashiji Glass

4/5 mm

Flutelite Glass

4/5 mm

Mistlite Glass

4/5 mm

Wood Glass

4/5 mm

Water Glass

4/5 mm

Granite Glass

4/5 mm

Tailored Color and Light Transmittance

Pixasolar offers unparalleled design versatility with a range of appearance options for our BIPV panels. From classic black to vibrant colors and varying levels of translucency achieved through precise cell coverage and cell type selection, we empower you to create truly unique and visually striking building envelopes.

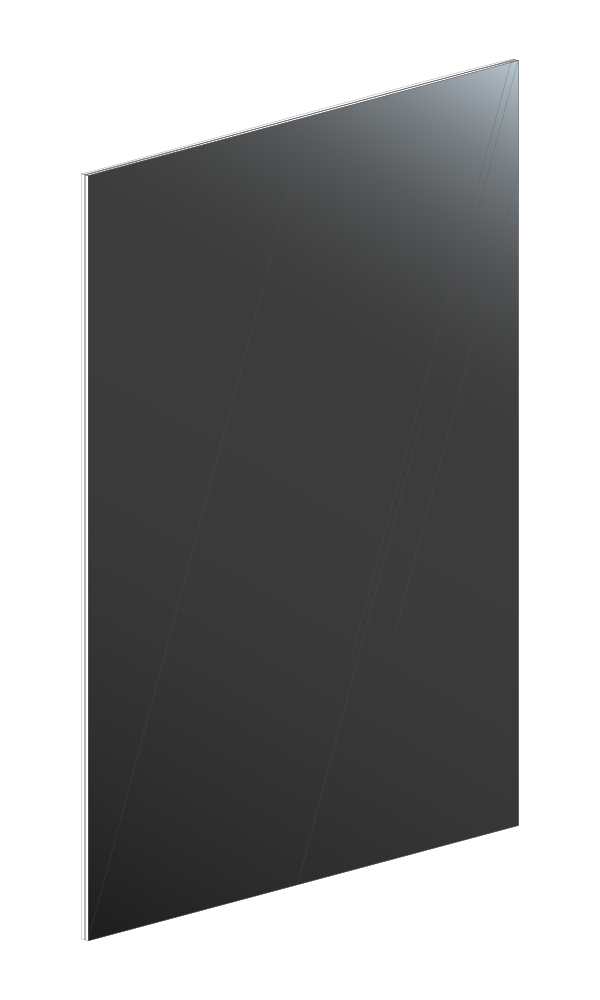

Opaque Black

Standard Black / Full Black

Opaque Color

Single Color / Multi-color

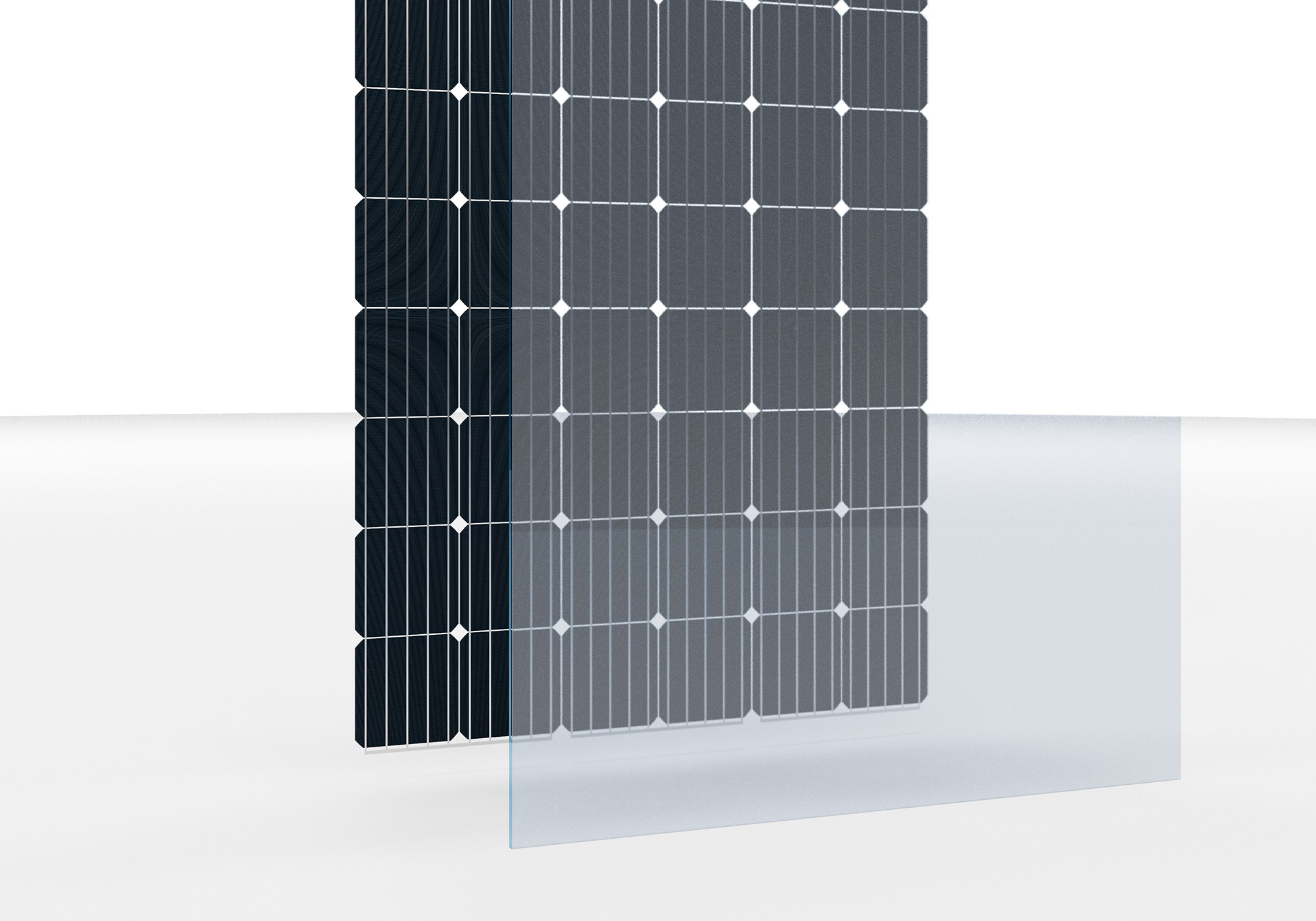

Translucent FCC

Light trans. 25%-90%

Translucent HCC

Light trans. 25%-90%

Translucent SCC

Light trans. 45%-55%

Cell Selection

Optimize energy performance and visual integration by selecting the appropriate solar cell technology for your BIPV project. We offer a range of cell types, each with unique characteristics in terms of efficiency, appearance, and performance under different light conditions. Our experts can help you choose the ideal cell technology to meet your specific project requirements.

M2 Full

G1 Full

M6 Full

M10 Full

M2 Half-cut

G1 Half-cut

M6 Half-cut

M10 Half-cut

G12 Half-cut

Stripe-Cut

Shingle

M10 Back Contact

M10 Topcon

G12 Topcon

Integration Details

Pixasolar offers a variety of edge and mounting options to ensure seamless and secure integration of our BIPV panels into your building system. From frameless designs to specialized mounting solutions, we provide the necessary hardware and expertise for efficient and aesthetically pleasing installations.

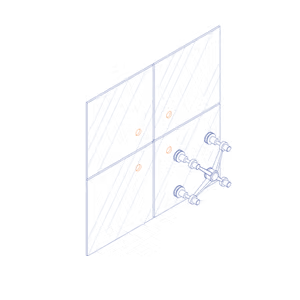

Mounting Holes

Available for Spider Clamping System

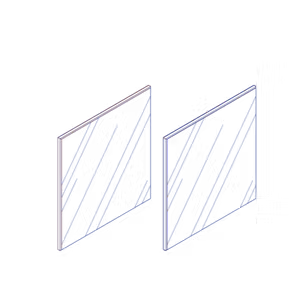

Glass Edge

Flat Polish & Ground Pencil Edge

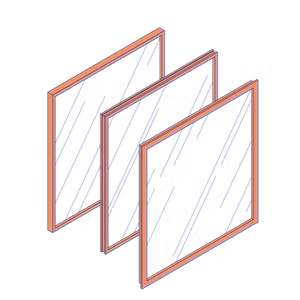

Aluminum Frame

Customized Frame Available on Request

Custom Dimensions

Achieve maximum design flexibility with Pixasolar’s custom panel sizing and shaping capabilities. We can manufacture BIPV panels in a variety of sizes and shapes to meet the specific dimensions and architectural requirements of your project, enabling seamless integration into even the most complex building designs.

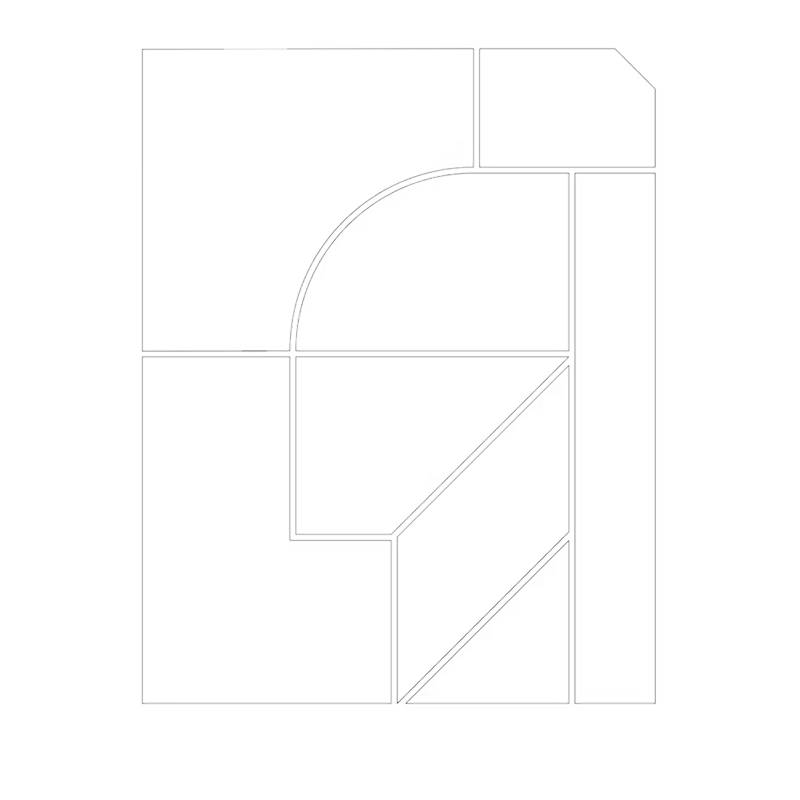

Tailored shapes

Special shape on request

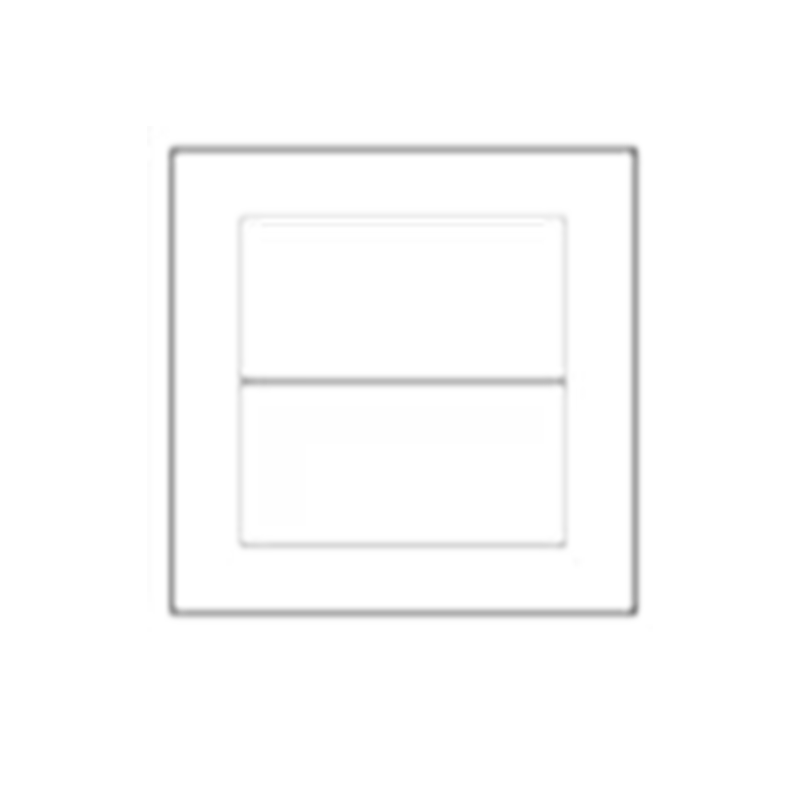

Flexible Size

Minimum size 300 x300 mm

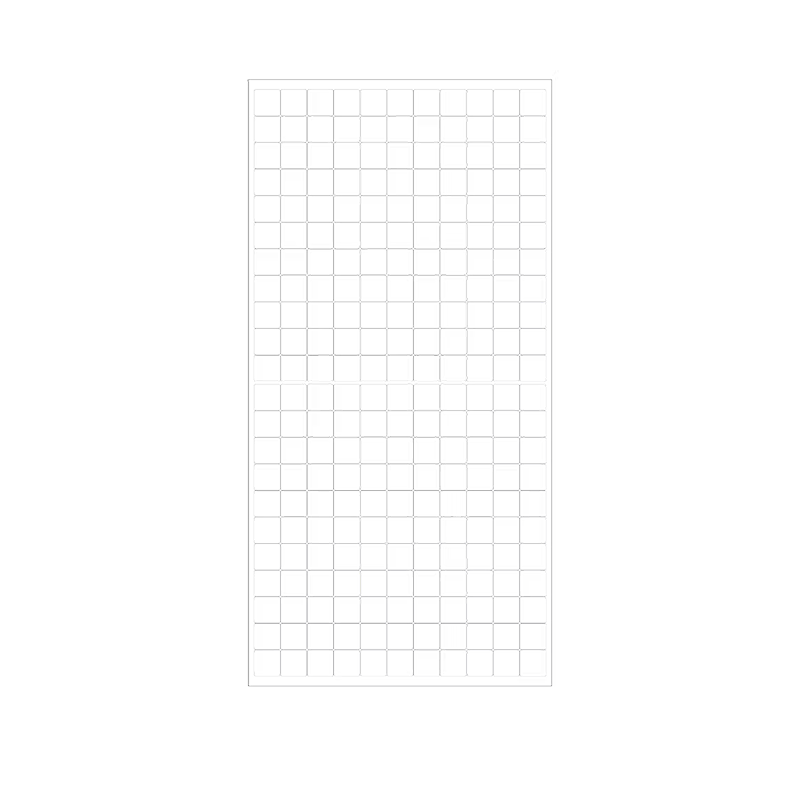

Flexible Size

Maximum size 2000 x4000 mm

Panel Composition

Pixasolar BIPV panels are engineered for durability, performance, and seamless integration. We offer various panel structures and compositions, including options for insulated glass units, to meet specific project requirements for thermal performance, structural integrity, and overall building integration.

Single Glass

2 /3.2 /4mm + Backsheet

Double Glass

2/2mm-10/10mm

Triple Glazed

2/2mm-10/10mm

Double Glazed lGU

Laminated Glass + Insulation+ Single/Laminated Glass

Triple Glazed lGU

Laminated Glass + 2x Insulation+ Single/Laminated Glass

Your Path to Perfect BIPV Integration Starts Here

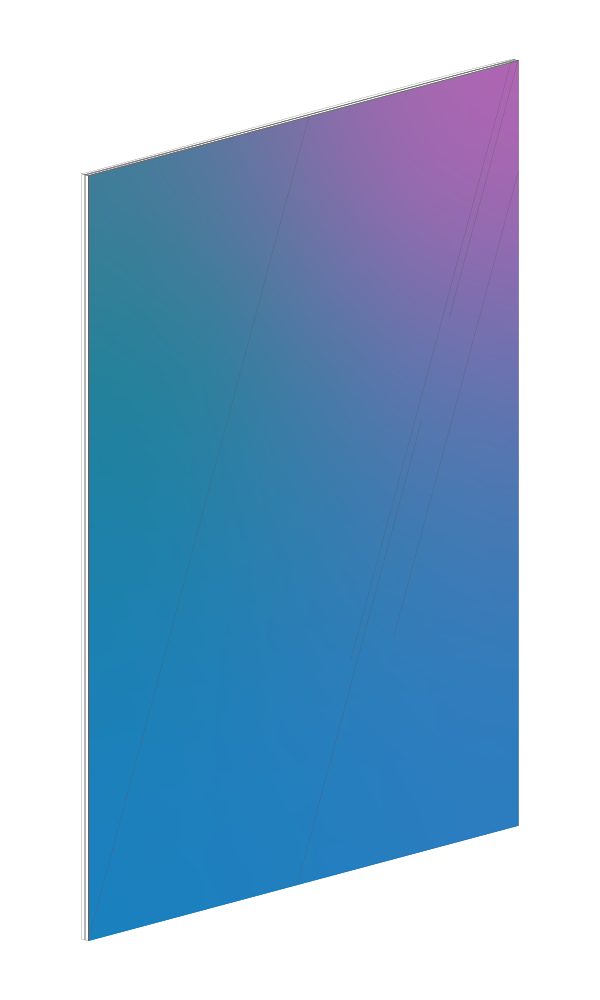

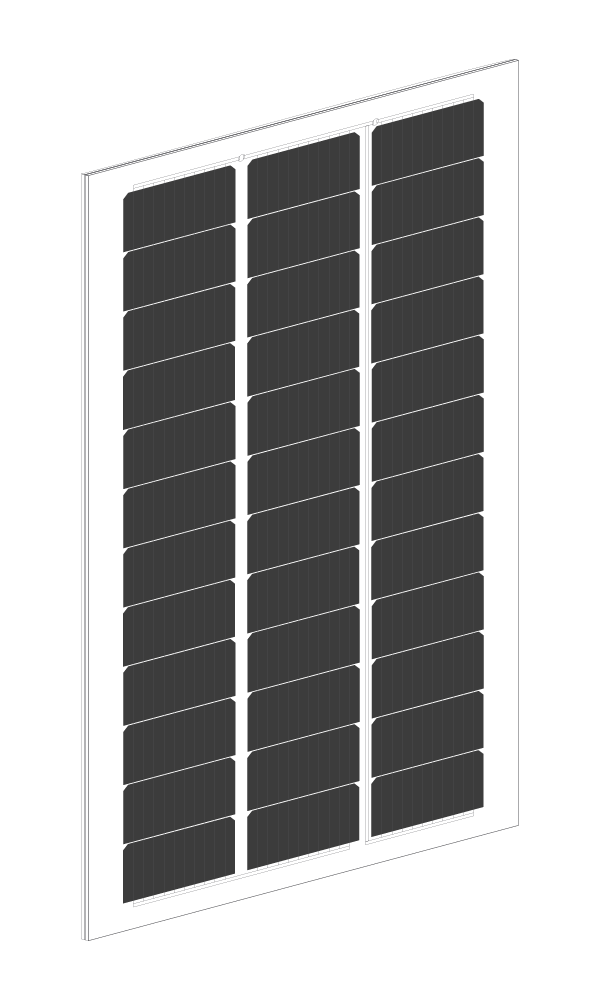

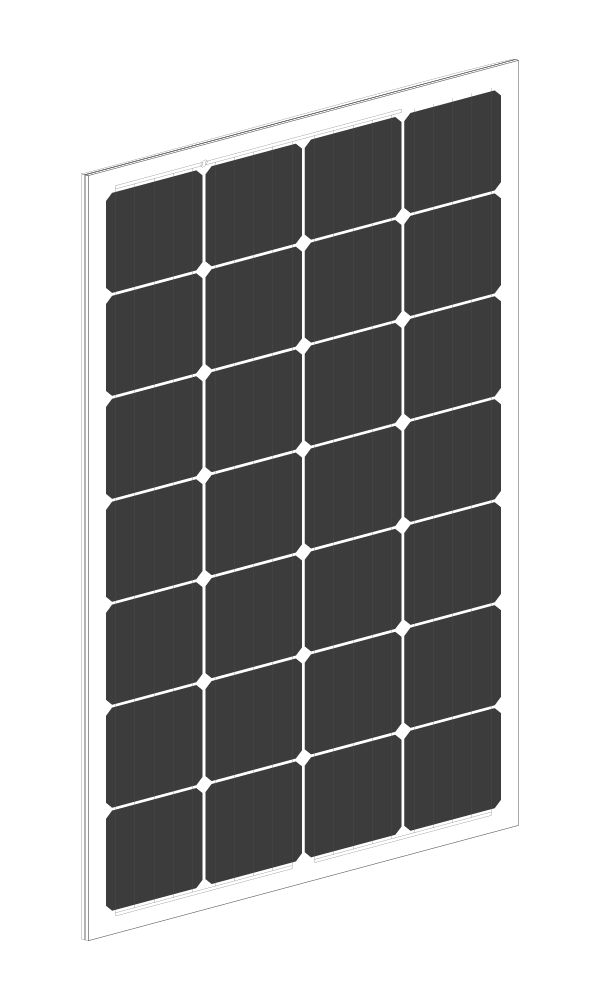

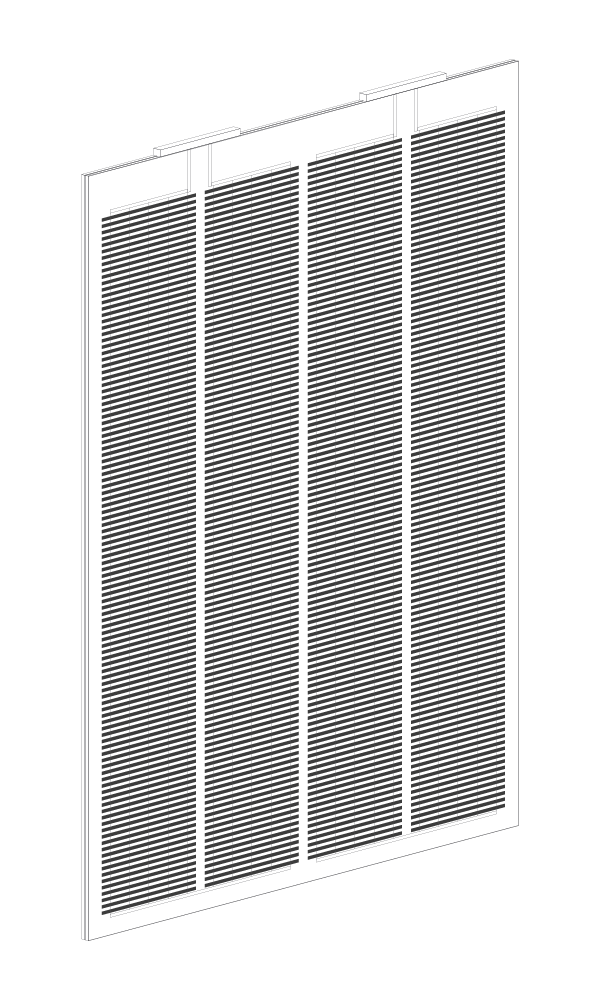

Standard PV panel

Explore Standard Options

If you’re looking for a quick start, explore our standard panel sizes. Engineered for maximized power generation, lightweight installation, and full compliance with building and solar industry regulations, these panels offer a reliable foundation. Download our datasheet for dimensions and technical details.

DOWNLOAD
Contact us with Project

Design your custom solution with us

Have a unique BIPV vision? Our experienced designers and engineers are ready to collaborate with you. Share your project details, and we’ll create a custom solution that perfectly meets your requirements.
